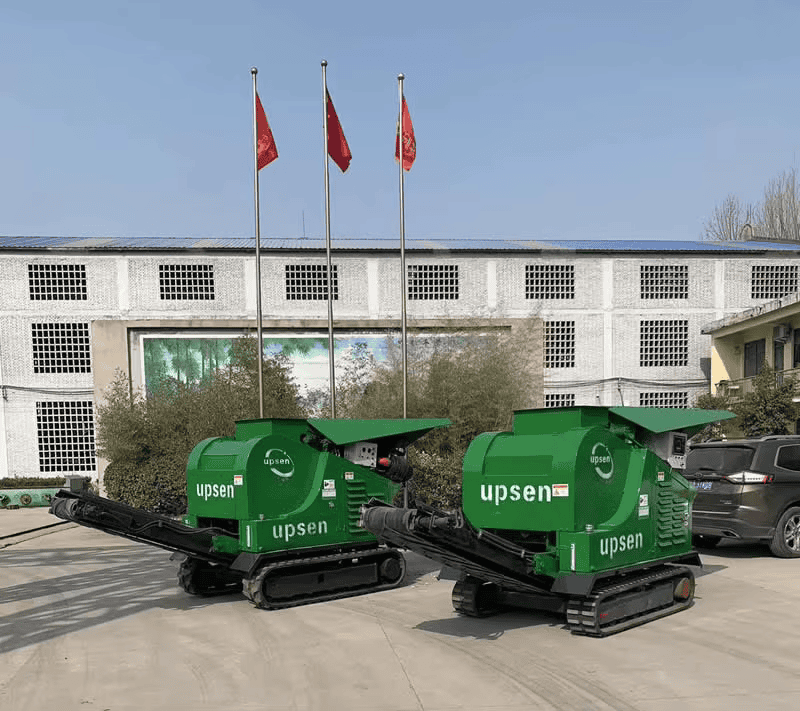

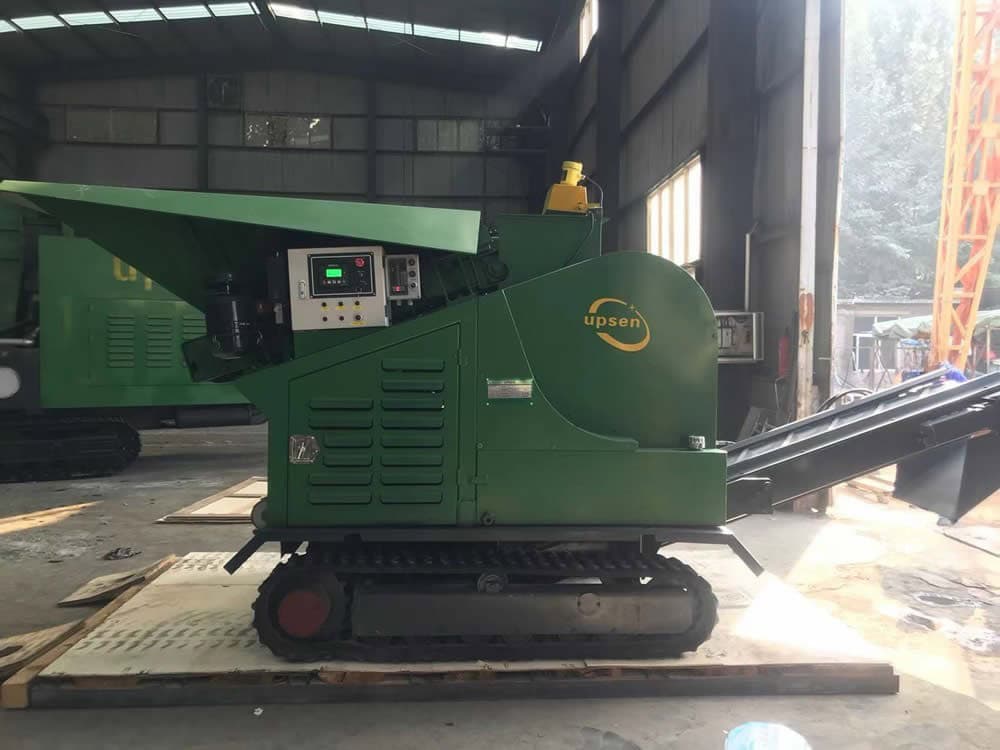

USA-503JC · Compact Tracked Jaw Crusher
Built like equipment used to be.
Simple by Design.
Built to Work.
A 10–30 tph tracked jaw crusher on rubber tracks, 5'3" wide — for small contractors, landscapers and yards that want to turn concrete, block and stone into base on site, with a machine a qualified technician can actually work on.
- ~ 19" × 12" jaw
- 10–30 tph
- Yanmar diesel
- 9,920 lb
- 5'3" wide
- Rubber tracks
Supported machine, built to order. 1-year parts warranty and first-year field-service coverage included.
Prices are for the standard supported machine, before options, delivery and applicable tax. Delivery quoted to your site.
Right-size it
Is the 503 the right size?
The 503 is the smallest UPSEN crusher with a diesel, a hopper feeder and a real discharge conveyor. It sits between the mini 503JC-E and the 604 — here's the difference in numbers.
| USA-503JC-E | USA-503JC | USA-604JC | |
|---|---|---|---|
| Jaw opening | 15.7" × 9.8" (400 × 250 mm) | 18.9" × 11.8" (480 × 300 mm) | 25.6" × 13.8" (650 × 350 mm) |
| Max feed | 7.1" × 11.8" (180 × 300 mm) | 9.8" (250 mm) | 11" × 20.5" (280 × 520 mm) |
| Rated production | 10–20 t/h | 10–30 t/h | 15–50 t/h |
| Operating weight | 5,401 lb (2,450 kg) | 9,921 lb (4,500 kg) | 9,921 lb (4,500 kg) |
| Transport (L × W × H) | 15'5" × 3'7" × 6'11" (4,700 × 1,100 × 2,100 mm) | 9'2" × 5'3" × 5'7" (2,800 × 1,600 × 1,700 mm) | 9'6" × 5'3" × 8'8" (2,900 × 1,600 × 2,650 mm) |
| Undercarriage | Rubber tracks | Rubber tracks | Steel tracks |
| Price | $73,900 | $86,900 | $98,400 |
| Availability | Factory order | Factory order | Stocked in the U.S. |
Rated production depends on material, feed size and discharge setting. If the sites are backyards and alleys, look at the 503JC-E; if you'll feed it with a full-size excavator every week, the 604 — which is also in stock.
See it work
Want to see a 503 run before you commit? Ask on the quote form. We'll send video of the machine on material like yours, and tell you what's possible for seeing one in person.
The idea behind the machine
Built like equipment used to be.
Heavy equipment keeps getting more complicated. More sensors, more controllers, more proprietary software between the operator and the machine — and more ways for a machine to stop that nobody on your site can diagnose.
UPSEN takes a different approach. The USA-503JC is designed around conventional diesel-hydraulic systems and components a qualified heavy-equipment technician will recognize: a Yanmar diesel, a hydraulic drive, a jaw, a belt, rubber tracks. Technology stays where it makes the machine better to run — the hydraulic drive that lets one person run it, for one. It doesn't get added because it can be.
Some manufacturers go the other way and build more integration into their machines. That's a legitimate choice. So is this one. Which philosophy fits you comes down to one question: who's going to work on it?
Mechanical where it matters
Diesel-hydraulic drive. Conventional systems. Nothing proprietary standing between you and the machine.
Understandable
Designed so qualified heavy-equipment technicians can understand it, diagnose it and service it — your mechanic, or an independent technician we coordinate.
Built for the job
It crushes, it tracks, it stacks. Everything you need to do the job. Less of what you don't.
This isn't nostalgia. It's a decision about what a crusher is for.
Why the 503
What you're actually buying.
Six things the USA-503JC does that matter on a job, in the order contractors ask about them.
Real production at a small size
Rated 10–30 tph through an 18.9" × 11.8" (480 × 300 mm) jaw with a 9.8" (250 mm) feed. Break slabs to the size of a paver and it eats them; block, curb and stone go in as they are.
Trailer-sized
9,921 lb, 5'3" wide and 5'7" tall in transport. It rides a tag trailer behind a properly rated truck, fits through a 6-foot gate, and parks in a yard bay when the job's done.
Yanmar diesel, hydraulic drive

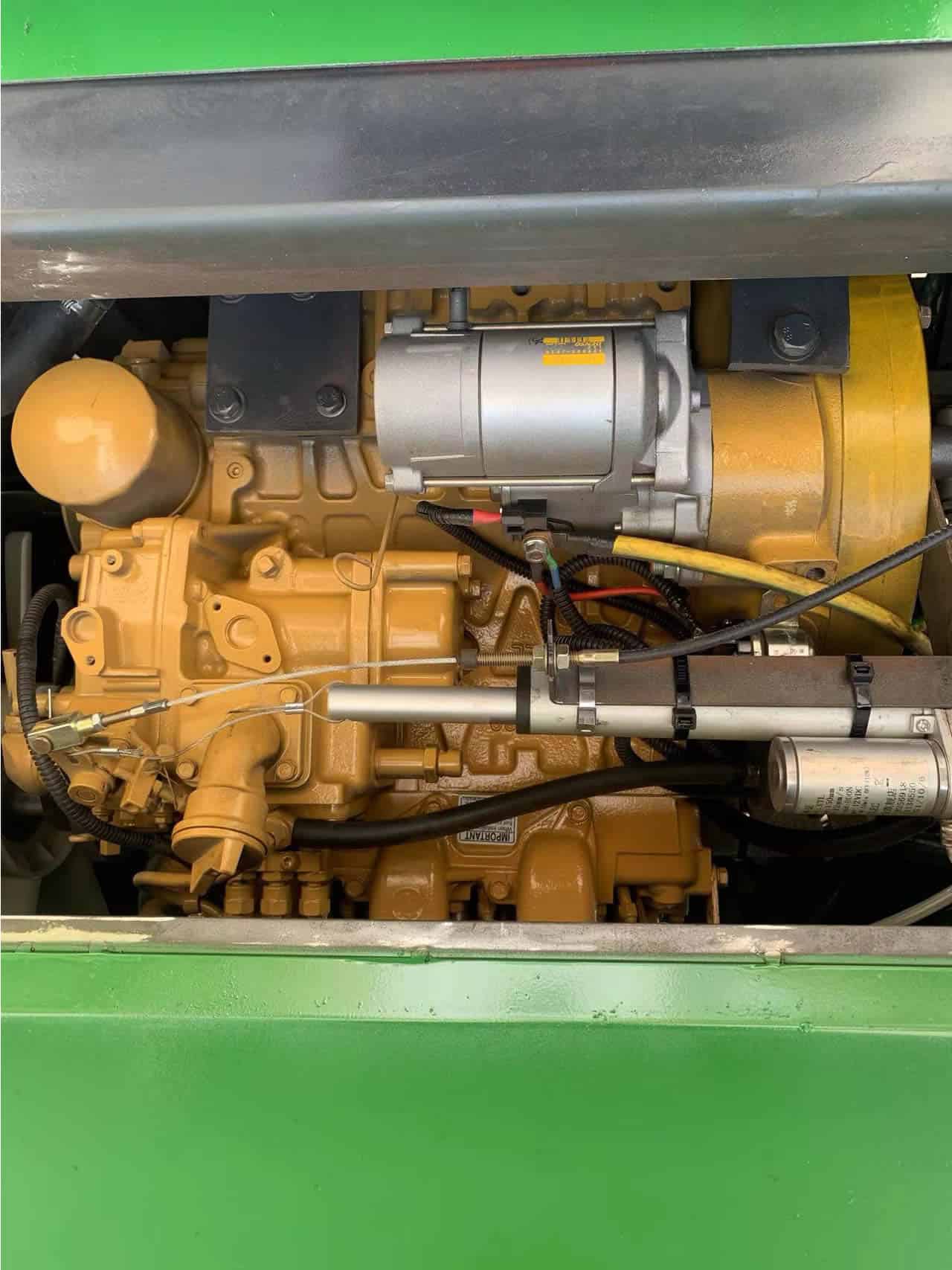

A 25 HP (18.4 kW) Yanmar diesel and hydraulic drive. Conventional systems a technician can trace with a schematic and a gauge, not a laptop and a login.
Rubber tracks
Tracks that move on finished pavement, driveways and shop floors without tearing them up — the right undercarriage for work near the customer's house, not just the pit.
Practical serviceability

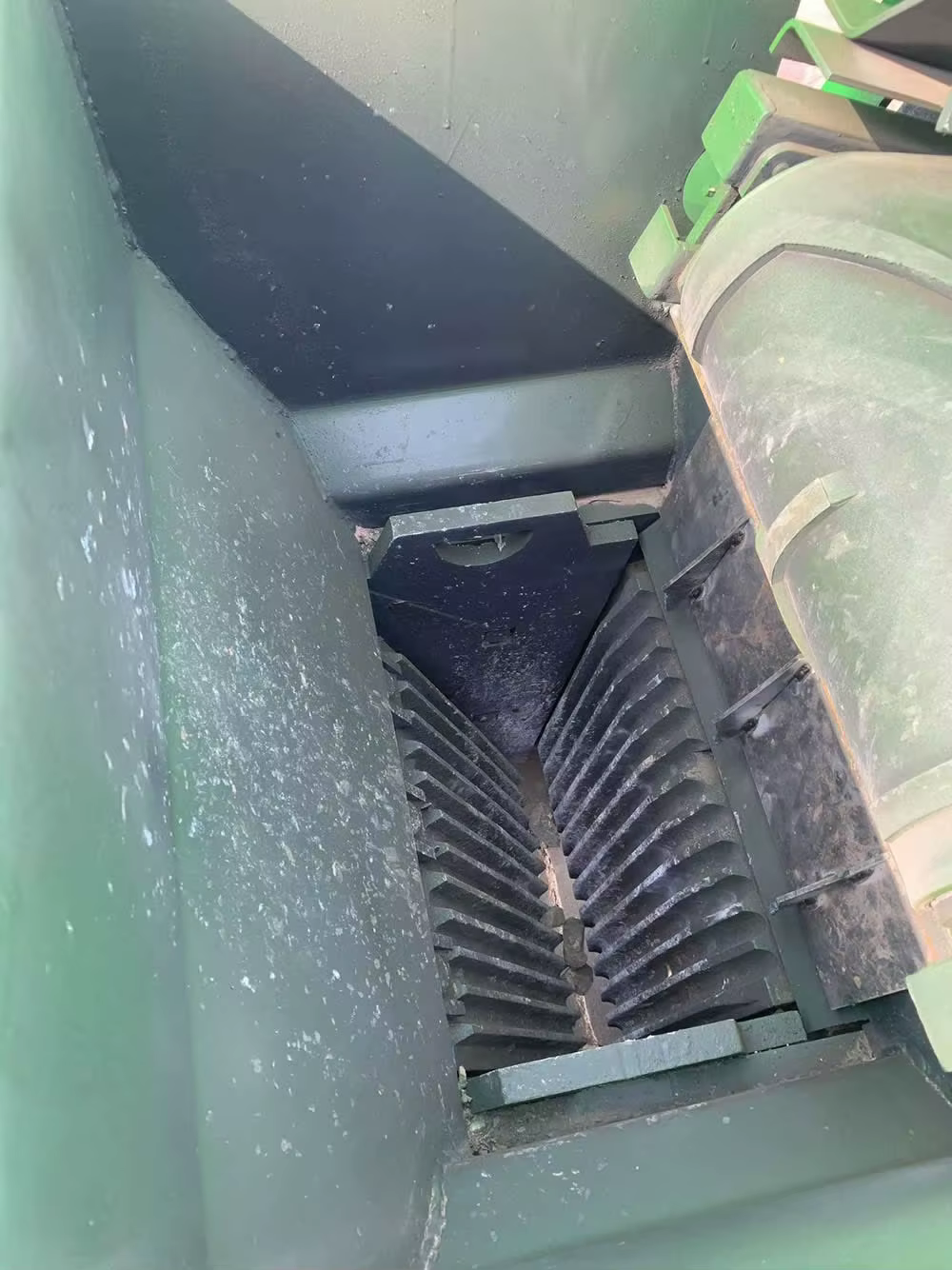

Manganese-steel jaw plates — the same wear metallurgy the rest of the industry runs. Common wear parts, stocked in the U.S. Accessible service points. A full English operator's manual written to be used, not filed.
Supported from day one
Built to order for the U.S. market. A 1-year parts warranty and first-year field-service coverage included. Wear and service parts on the shelf here. Financing through our lending partners. Delivery quoted to your site.
Pricing
What it costs, and what comes with it.
The USA-503JC is sold as a supported machine. The price includes the coverage a crusher should come with — not just the iron.
$86,900
Built to order and delivered to your site. Options and delivery quoted separately.
Included with every USA-503JC
- 1-year manufacturer parts warranty
- 12 months of field-service coverage, coordinated by UPSEN USA
- Factory troubleshooting relayed through UPSEN USA — a direct line to the people who built it
- Wear and service parts stocked in the U.S., shipped same or next business day
- Full English operator's and parts manual
- Delivery quoted to your destination — no flat-rate guesswork
Estimated monthly payment
— /mo · 60 months
Estimate — 60 months at ~10.7% APR. Final terms set by the lender on approved credit.
Based on the listed machine price.
Financing
Available through our lending partners. Getting pre-approved before we talk keeps the whole process moving. Apply for financing →
Configure it
Magnet, dust suppression, service and wear kits — priced on your quote. Tell us what you're crushing and we'll tell you what you actually need.
Price is for the standard supported machine, before options, delivery and applicable tax.
Support & warranty
What support looks like.
UPSEN USA backs every machine it sells with a direct line to the factory, wear parts stocked in the U.S., and field service coordinated by our own support team. Here's how it works when you need it.
You call UPSEN USA
Call, text or email our support team with photos or video. You reach people who know the machine — and who talk to the factory directly.
We work it with the factory
UPSEN USA takes the issue straight to the manufacturer and comes back with a clear next step: what to check, what to adjust, what to replace.
Parts ship fast
Wear and service parts ship from our U.S. stock same or next business day — most customers have them in hand within 2–3 days. Factory-sourced components are air-freighted.
Field service, coordinated by us
If the fix needs hands on the machine, UPSEN USA dispatches an insured, independent heavy-equipment technician and manages the job start to finish. In your first 12 months, covered work draws on the field-service coverage included with the machine.
Full coverage terms come with your proposal.
One accountable company. Parts in stock in the U.S. A direct line to the factory. That's the structure — and it's what you get.
Options
Configure the machine.
Add what your material needs and skip what it doesn't. Each option is priced on your quote, with the machine.
Magnetic separator
Priced on your quote
Magnet over the discharge belt that pulls mesh, rebar and tramp steel out of your product.
Recommended for concrete & demoWater dust suppression
Priced on your quote
Spray system for dust control at the crusher and discharge. Water spray is the standard silica-dust control for crushing equipment.
Recommended for most sitesService-parts kit
Priced on your quote
Filters, belts and the service items you'll need in year one — on your shelf before you need them.
Wear-parts kit
Priced on your quote
Spare jaw plates and wear items, so a change-out doesn't wait on a shipment.
Options are priced separately from the machine. Not sure what your material needs? Say what you're crushing on the quote form and we'll tell you what makes sense — and what doesn't.
Specifications
USA-503JC, by the numbers.
U.S. Tier 4 Final configuration. U.S. customary measurements first, with metric equivalents alongside.
Crusher
| Jaw opening | 18.9" × 11.8" (480 × 300 mm) |
| Max feed size | 9.8" (250 mm) |
| Rated production | 10–30 t/h |
| Discharge setting (CSS) | ⅜" – 2" (10–50 mm) |
| Jaw plates | Manganese steel (ZGMn13Cr2) |
Engine & drive
| Engine | Yanmar diesel |
| Emissions | EPA Tier 4 Final |
| Rated output | 25 HP (18.4 kW) |
| Drive | Diesel-hydraulic |
Hopper & feeder
| Hopper capacity | 2.0 yd³ (1.5 m³) |
| Feed conveyor | 15.7" × 4'11" (B400 × 1,500 mm) |
Conveyor
| Main conveyor | 15.7" × 8'2" (B400 × 2,500 mm) |
| Stacking height | 3'7" (1.1 m) |
Machine
| Operating weight | 9,921 lb (4,500 kg) |
| Working dimensions (L × W × H) | 15'1" × 5'3" × 5'7" (4,600 × 1,600 × 1,700 mm) |
| Transport dimensions (L × W × H) | 9'2" × 5'3" × 5'7" (2,800 × 1,600 × 1,700 mm) |
| Undercarriage | Rubber tracks, 11.8" × 6'11" (300 × 2,100 mm) |
Included with the machine
| Documentation | English operator's and parts manual |
| Warranty | 1-year manufacturer parts warranty |
| Support | 12 months field-service coverage; factory troubleshooting relayed through UPSEN USA |
| Parts | Wear and service parts stocked in the U.S., shipped same or next business day |
Full spec sheet, options and dimensions — sent to your inbox.
Specifications describe the U.S. Tier 4 Final configuration and are subject to change by the manufacturer. Actual production varies with material, feed size, discharge setting, moisture and operating practice.
Brochure
Get the USA-503JC brochure.
Everything on this page in a form you can print, forward to a partner, or hand to your mechanic:
- Full specification sheet, U.S. Tier 4 Final configuration
- Working and transport dimensions
- Options and what's included with the machine
- How support and the parts warranty work
Enter your email and it's on the way.
Applications
Where the 503 earns its keep.
A 19" × 12" jaw on a machine that tows behind a truck and runs on rubber tracks covers the jobs a small contractor pays dump fees on today. Here's where it fits.
Concrete & block
Slabs, curb, block and footings into base and fill, on the site that produced them.
Driveways & sidewalks
Tear-out into base for the replacement — no dumpster, no haul.
Landscape & hardscape
Pavers, wall block and stone into base for the next patio or wall.
Small demolition
A garage, a slab, a pool deck — processed on site instead of hauled.
Utility cuts & trenches
Backfill made from what came out of the ground.
Brick & CMU
Masonry rubble into usable fill and drainage stone.
Asphalt
Chunks and millings into RAP you can reuse.
Tight-access & residential
Backyards, alleys and finished pavement — rubber tracks, 5'3" wide.
Small businesses cutting dump runs
Landscapers, masons and small excavators who pay to dispose of what they could sell.
Who you're dealing with
The authorized U.S. distributor, with a direct line to the factory.
You should know exactly who's behind your machine.
UPSEN USA
The authorized U.S. distributor for UPSEN equipment, supporting compact crushing, screening and processing equipment in the U.S. since 2022. Sales, stock, parts and service coordination through one team.
The factory
UPSEN has built mobile crushing, screening and shredding equipment since 2010 — 33 models, ISO 9001 certified, with machines working in more than 80 countries. UPSEN USA has worked directly with the factory's leadership for more than five years. Diesel machines built for the U.S. market carry EPA Tier 4 Final engines.
How we work
- Price published, options priced, delivery quoted to your site
- Wear and service parts stocked in the U.S.
- Field service coordinated by UPSEN USA
- A direct line to the factory when a question needs the people who built the machine
- Real people on the phone — not a ticket queue
Next step
Tell us what you're crushing.
Send the basics. You'll get back build timing, a delivery quote to your site, and a straight answer on whether the 503 is the right machine — or whether the 503JC-E or the 604 fits your jobs better.
Prefer to talk?
+1 (617) 546-8001
Call or text. Our sales team picks up.
Financing
Financing is available through our lending partners. Apply for financing →
Want to see it run first?
Check the box on the form. We'll send video of the 503 on material and tell you what's possible for seeing one in person.
Not ready to talk?
Request the brochure → Specs, options and dimensions, sent to your inbox.
