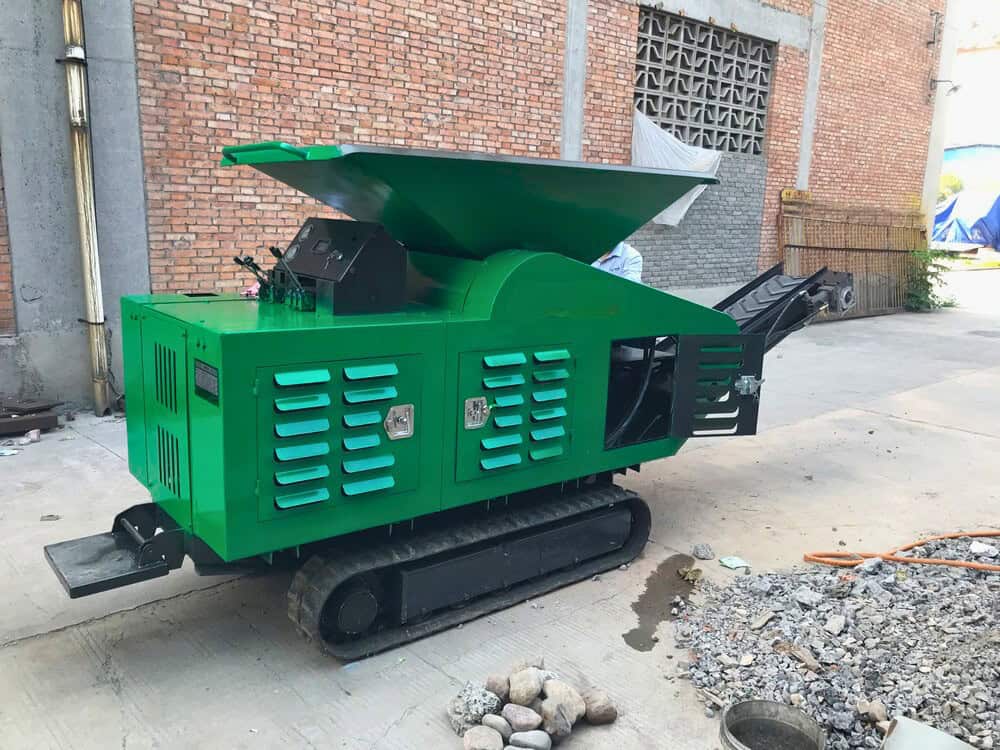

USA-503JC-E · Mini Tracked Jaw Crusher
Built like equipment used to be.
Simple by Design.
Built to Work.
A 10–20 tph jaw crusher that's 3'7" wide, tracks through a backyard gate and stacks its own pile — for demo crews, landscapers and masons who pay to haul away what they could crush on site, with a machine a qualified technician can actually work on.
- ~ 16" × 10" jaw
- 10–20 tph
- Perkins diesel
- 5,400 lb
- 3'7" wide
- Remote tracking
Supported machine, built to order. 1-year parts warranty and first-year field-service coverage included.
Prices are for the standard supported machine, before options, delivery and applicable tax. Delivery quoted to your site.
Right-size it
Is the 503JC-E the right size?
The 503JC-E has the same jaw as the mini 425JC with a diesel engine, remote tracking and a conveyor that builds a real pile. Here's how it sits between the 425 and the 503.
| USA-425JC | USA-503JC-E | USA-503JC | |
|---|---|---|---|
| Jaw opening | 15.7" × 9.8" (400 × 250 mm) | 15.7" × 9.8" (400 × 250 mm) | 18.9" × 11.8" (480 × 300 mm) |
| Max feed | 7.1" × 11.8" (180 × 300 mm) | 7.1" × 11.8" (180 × 300 mm) | 9.8" (250 mm) |
| Rated production | 1–8 t/h | 10–20 t/h | 10–30 t/h |
| Power | 14 HP Vanguard gas, clutch engagement; hydraulic system | 25 HP Perkins diesel, hydraulic | 25 HP Yanmar diesel, hydraulic |
| Operating weight | 2,866 lb (1,300 kg) | 5,401 lb (2,450 kg) | 9,921 lb (4,500 kg) |
| Width | 2'6" (760 mm) | 3'7" (1,100 mm) | 5'3" (1,600 mm) |
| Stacking height | 3'3" (1.0 m) | 4'11" (1.5 m) | 3'7" (1.1 m) |
| Price | $32,900 | $73,900 | $86,900 |
| Availability | Factory order | Factory order | Factory order |
Rated production depends on material, feed size and discharge setting. If the material is patios and pool decks and the budget is the point, the 425; if the jobs are bigger than a backyard, the 503 or the 604.
See it work
Want to see a 503JC-E run before you commit? Ask on the quote form. We'll send video of the machine on material like yours, and tell you what's possible for seeing one in person.
The idea behind the machine
Built like equipment used to be.
Heavy equipment keeps getting more complicated. More sensors, more controllers, more proprietary software between the operator and the machine — and more ways for a machine to stop that nobody on your site can diagnose.
UPSEN takes a different approach. The USA-503JC-E is designed around conventional diesel-hydraulic systems and components a qualified heavy-equipment technician will recognize: a Perkins diesel, a hydraulic drive, a jaw, a belt, rubber tracks. Technology stays where it makes the machine better to run — the remote that walks it in from a safe distance, for one. It doesn't get added because it can be.
Some manufacturers go the other way and build more integration into their machines. That's a legitimate choice. So is this one. Which philosophy fits you comes down to one question: who's going to work on it?
Mechanical where it matters
Diesel-hydraulic drive. Conventional systems. Nothing proprietary standing between you and the machine.
Understandable
Designed so qualified heavy-equipment technicians can understand it, diagnose it and service it — your mechanic, or an independent technician we coordinate.
Built for the job
It crushes, it tracks, it stacks. Everything you need to do the job. Less of what you don't.
This isn't nostalgia. It's a decision about what a crusher is for.
Why the 503JC-E
What you're actually buying.
Six things the USA-503JC-E does that matter on a job, in the order contractors ask about them.
Goes where crushers don't
3'7" wide and 5,401 lb. It tracks through a backyard gate, down a side yard and onto a finished driveway on rubber tracks — the places a demo crew pays a dumpster to solve today.
A real pile, not a heap
A B280 discharge conveyor stacks to 4'11", so product builds into a pile a skid steer can load — instead of a mound under the jaw you have to keep clearing.
Diesel-hydraulic simplicity
A 25 HP (18.4 kW) Perkins diesel and hydraulic drive. Conventional systems a technician can trace with a schematic and a gauge, not a laptop and a login.
Remote tracking
Walk it into position from a safe distance, out of the dust and away from the feed. One person unloads, positions and runs it.
Practical serviceability
Manganese-steel jaw plates. Common wear parts, stocked in the U.S. Accessible service points. A full English operator's manual written to be used, not filed.
Supported from day one
Built to order for the U.S. market. A 1-year parts warranty and first-year field-service coverage included. Wear and service parts on the shelf here. Financing through our lending partners. Delivery quoted to your site.
Pricing
What it costs, and what comes with it.
The USA-503JC-E is sold as a supported machine. The price includes the coverage a crusher should come with — not just the iron.
$73,900
Built to order and delivered to your site. Options and delivery quoted separately.
Included with every USA-503JC-E
- 1-year manufacturer parts warranty
- 12 months of field-service coverage, coordinated by UPSEN USA
- Factory troubleshooting relayed through UPSEN USA — a direct line to the people who built it
- Wear and service parts stocked in the U.S., shipped same or next business day
- Full English operator's and parts manual
- Delivery quoted to your destination — no flat-rate guesswork
Estimated monthly payment
— /mo · 60 months
Estimate — 60 months at ~10.7% APR. Final terms set by the lender on approved credit.
Based on the listed machine price.
Financing
Available through our lending partners. Getting pre-approved before we talk keeps the whole process moving. Apply for financing →
Configure it
Dust suppression, service and wear kits — priced on your quote. Tell us what you're crushing and we'll tell you what you actually need.
Price is for the standard supported machine, before options, delivery and applicable tax.
Support & warranty
What support looks like.
UPSEN USA backs every machine it sells with a direct line to the factory, wear parts stocked in the U.S., and field service coordinated by our own support team. Here's how it works when you need it.
You call UPSEN USA
Call, text or email our support team with photos or video. You reach people who know the machine — and who talk to the factory directly.
We work it with the factory
UPSEN USA takes the issue straight to the manufacturer and comes back with a clear next step: what to check, what to adjust, what to replace.
Parts ship fast
Wear and service parts ship from our U.S. stock same or next business day — most customers have them in hand within 2–3 days. Factory-sourced components are air-freighted.
Field service, coordinated by us
If the fix needs hands on the machine, UPSEN USA dispatches an insured, independent heavy-equipment technician and manages the job start to finish. In your first 12 months, covered work draws on the field-service coverage included with the machine.
Full coverage terms come with your proposal.
One accountable company. Parts in stock in the U.S. A direct line to the factory. That's the structure — and it's what you get.
Options
Configure the machine.
Add what your material needs and skip what it doesn't. Each option is priced on your quote, with the machine.
Water dust suppression
Priced on your quote
Spray system for dust control at the crusher and discharge — the standard silica-dust control, and the difference between a residential job and a complaint.
Recommended for residential workService-parts kit
Priced on your quote
Filters, belts and the service items you'll need in year one — on your shelf before you need them.
Wear-parts kit
Priced on your quote
Spare jaw plates and wear items, so a change-out doesn't wait on a shipment.
Options are priced separately from the machine. Not sure what your material needs? Say what you're crushing on the quote form and we'll tell you what makes sense — and what doesn't.
Specifications
USA-503JC-E, by the numbers.
U.S. Tier 4 Final configuration. U.S. customary measurements first, with metric equivalents alongside.
Crusher
| Jaw opening | 15.7" × 9.8" (400 × 250 mm) |
| Max feed size | 7.1" × 11.8" (180 × 300 mm) |
| Rated production | 10–20 t/h |
| Discharge setting (CSS) | ¾" – 3⅛" (20–80 mm) |
| Jaw plates | Manganese steel |
Engine & drive
| Engine | Perkins diesel |
| Emissions | EPA Tier 4 Final |
| Rated output | 25 HP (18.4 kW) |
| Drive | Diesel-hydraulic |
| Controls | Remote for tracking |
Hopper

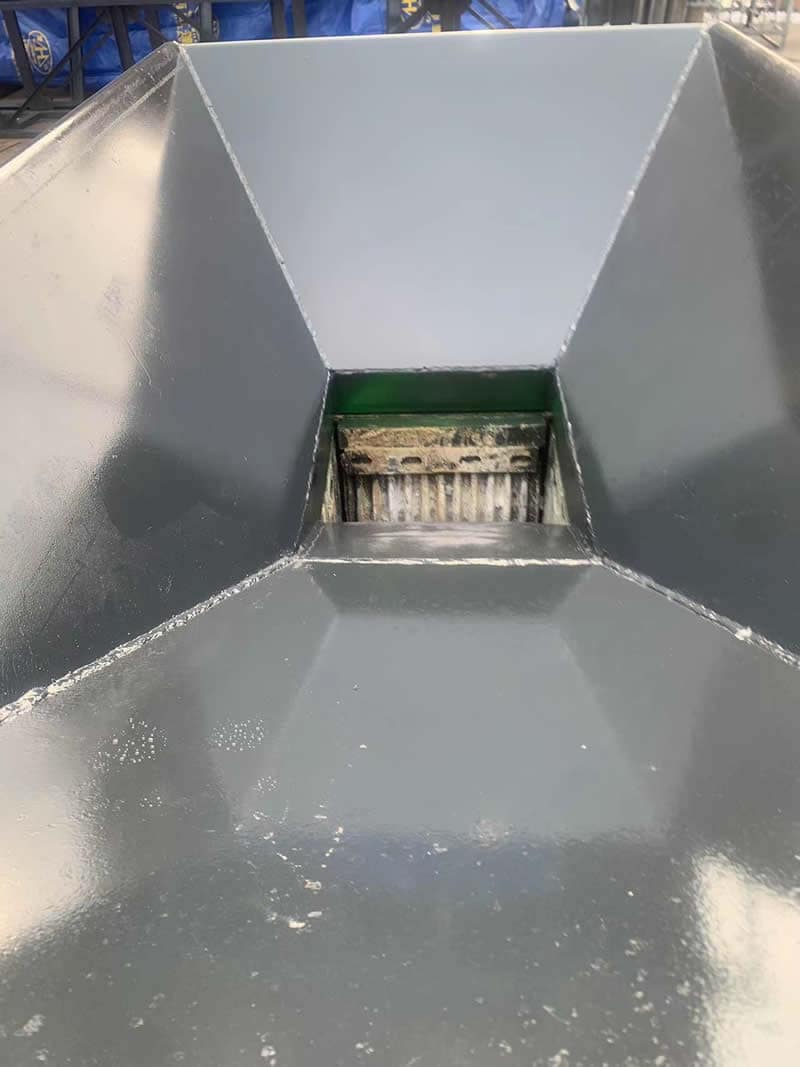

| Hopper capacity | 0.4 yd³ (0.3 m³) |
Conveyor
| Main conveyor | 11" × 8'2" (B280 × 2,500 mm) |
| Stacking height | 4'11" (1.5 m) |
Machine
| Operating weight | 5,401 lb (2,450 kg) |
| Working dimensions (L × W × H) | 15'5" × 3'7" × 6'11" (4,700 × 1,100 × 2,100 mm) |
| Undercarriage | Rubber tracks, 9.1" × 5'7" (230 × 1,700 mm) |
Included with the machine
| Documentation | English operator's and parts manual |
| Warranty | 1-year manufacturer parts warranty |
| Support | 12 months field-service coverage; factory troubleshooting relayed through UPSEN USA |
| Parts | Wear and service parts stocked in the U.S., shipped same or next business day |
Full spec sheet, options and dimensions — sent to your inbox.
Specifications describe the U.S. Tier 4 Final configuration and are subject to change by the manufacturer. Actual production varies with material, feed size, discharge setting, moisture and operating practice.
Brochure
Get the USA-503JC-E brochure.
Everything on this page in a form you can print, forward to a partner, or hand to your mechanic:
- Full specification sheet, U.S. Tier 4 Final configuration
- Working and transport dimensions
- Options and what's included with the machine
- How support and the parts warranty work
Enter your email and it's on the way.
Applications
Where the 503JC-E earns its keep.
A 16" × 10" jaw on a machine 3'7" wide covers the demo a residential and light-commercial crew hauls away today. Here's where it fits.
Backyard & residential demo
Patios, pool decks, walkways and driveways — crushed where they came out.
Brick, block & pavers
Masonry tear-out into base for the replacement.
Concrete with mesh
Small slabs and footings, broken to feed size, into fill and base.
Landscape & hardscape base
Make the base for the next wall or patio from the last one.
Utility & municipal
Sidewalk programs, small crews, tight rights-of-way.
Asphalt chunks & millings
Driveway tear-out into RAP you can reuse.
Tight urban sites
Alleys, side yards, courtyards and anything behind a gate.
Small demolition crews
Process on site at the pace a two-person crew produces.
Cutting dump runs
Every load you crush is a load you didn't pay to dump — or drive.
Who you're dealing with
The authorized U.S. distributor, with a direct line to the factory.
You should know exactly who's behind your machine.
UPSEN USA
The authorized U.S. distributor for UPSEN equipment, supporting compact crushing, screening and processing equipment in the U.S. since 2022. Sales, stock, parts and service coordination through one team.
The factory
UPSEN has built mobile crushing, screening and shredding equipment since 2010 — 33 models, ISO 9001 certified, with machines working in more than 80 countries. UPSEN USA has worked directly with the factory's leadership for more than five years. Diesel machines built for the U.S. market carry EPA Tier 4 Final engines.
How we work
- Price published, options priced, delivery quoted to your site
- Wear and service parts stocked in the U.S.
- Field service coordinated by UPSEN USA
- A direct line to the factory when a question needs the people who built the machine
- Real people on the phone — not a ticket queue
Next step
Tell us what you're crushing.
Send the basics. You'll get back build timing, a delivery quote to your site, and a straight answer on whether the 503JC-E is the right machine — or whether the 425 or the 503 fits your jobs better.
Prefer to talk?
+1 (617) 546-8001
Call or text. Our sales team picks up.
Financing
Financing is available through our lending partners. Apply for financing →
Want to see it run first?
Check the box on the form. We'll send video of the 503JC-E on material and tell you what's possible for seeing one in person.
Not ready to talk?
Request the brochure → Specs, options and dimensions, sent to your inbox.
