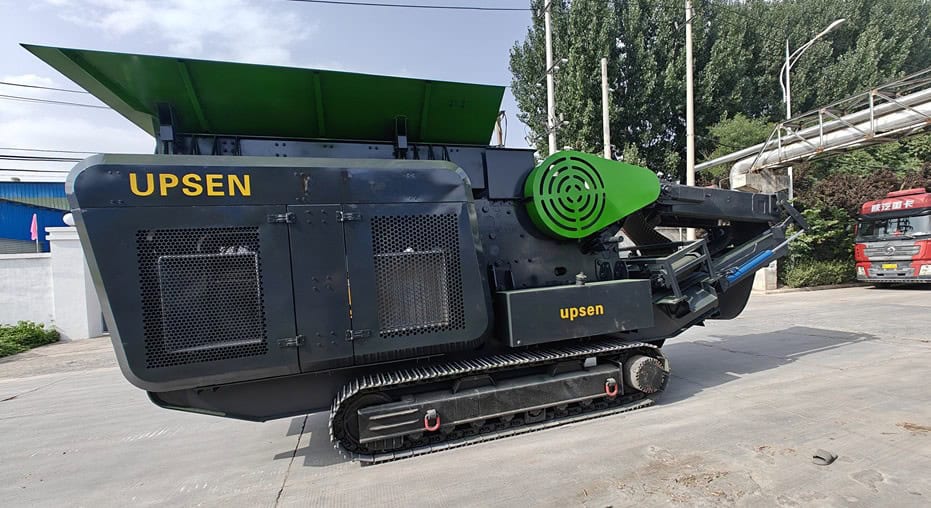

UPSEN UJC805 Jaw Crusher - Image 2

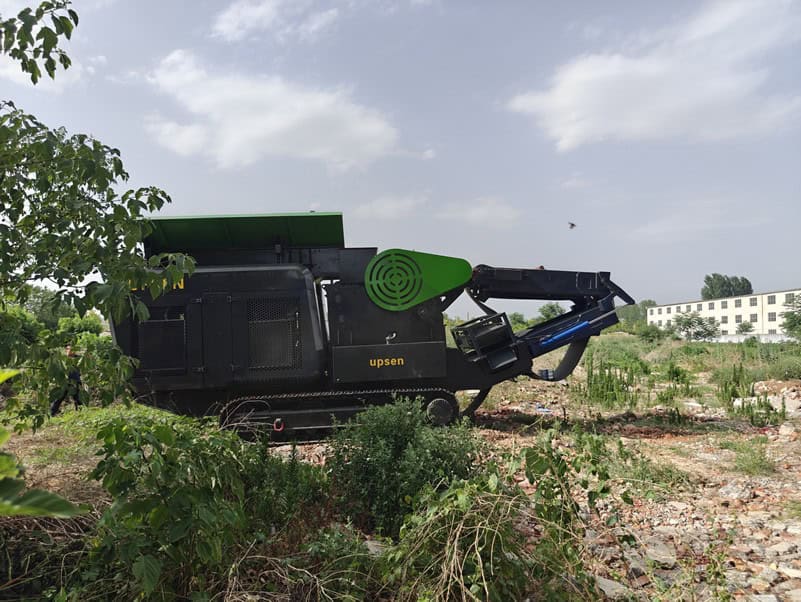

UPSEN UJC805 Jaw Crusher - Image 3

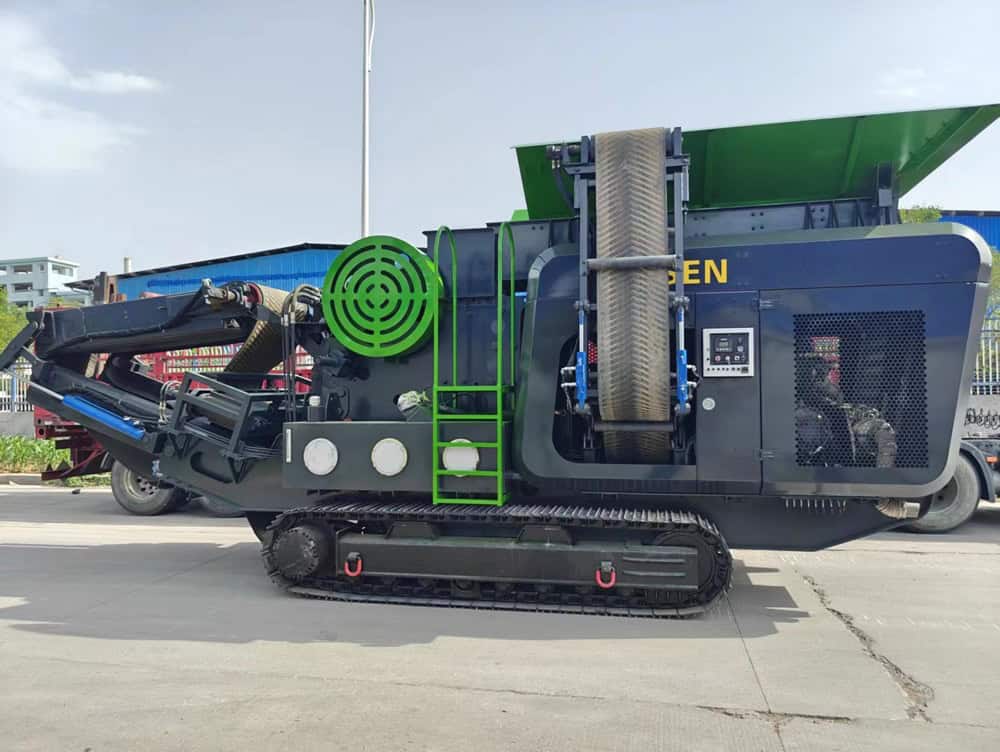

UPSEN UJC805 Jaw Crusher - Image 4

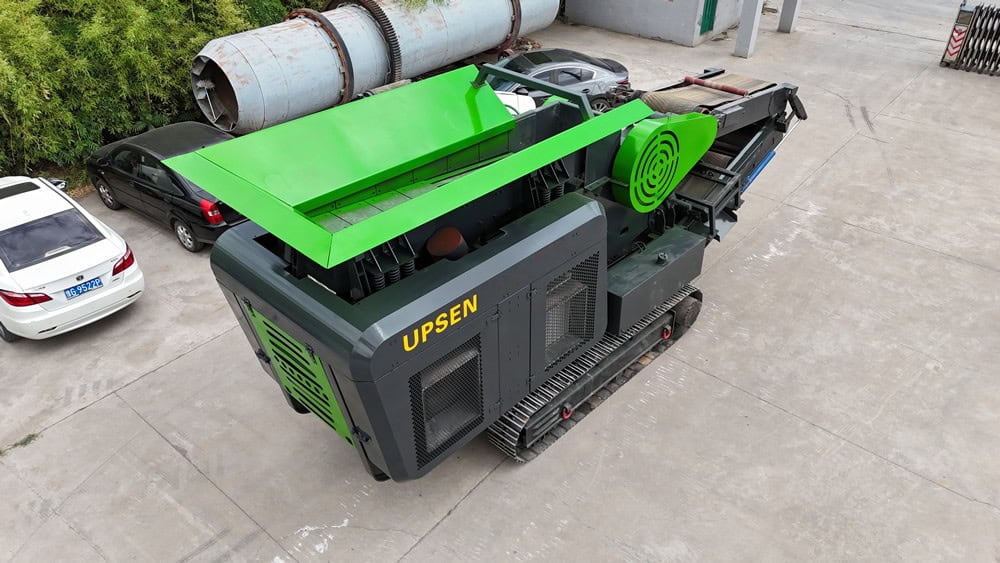

UPSEN UJC805 Jaw Crusher - Image 5
UPSEN UJC805 Jaw Crusher - Image 6

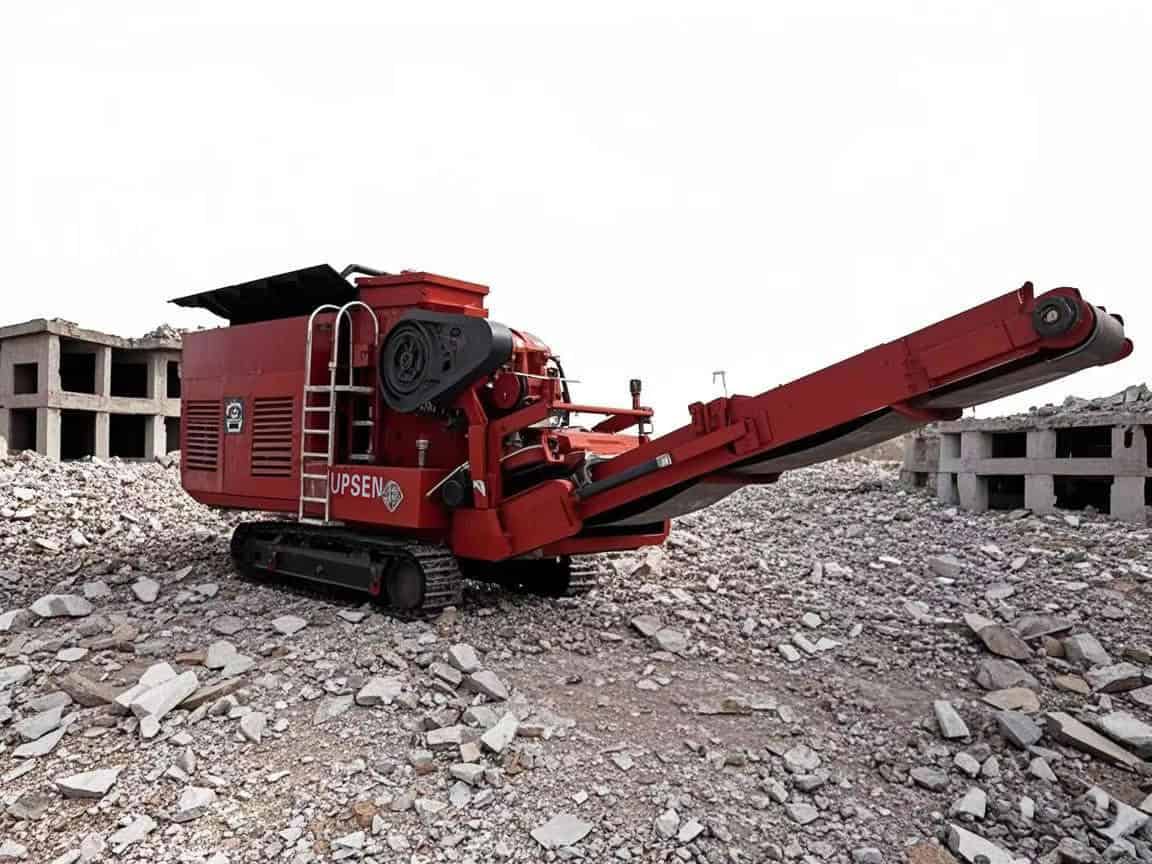

UPSEN USA-805JC ujc805 mobile jaw crusher - Edited
UPSEN USA-805JC ujc805 mobile jaw crusher processing concrete and rock.

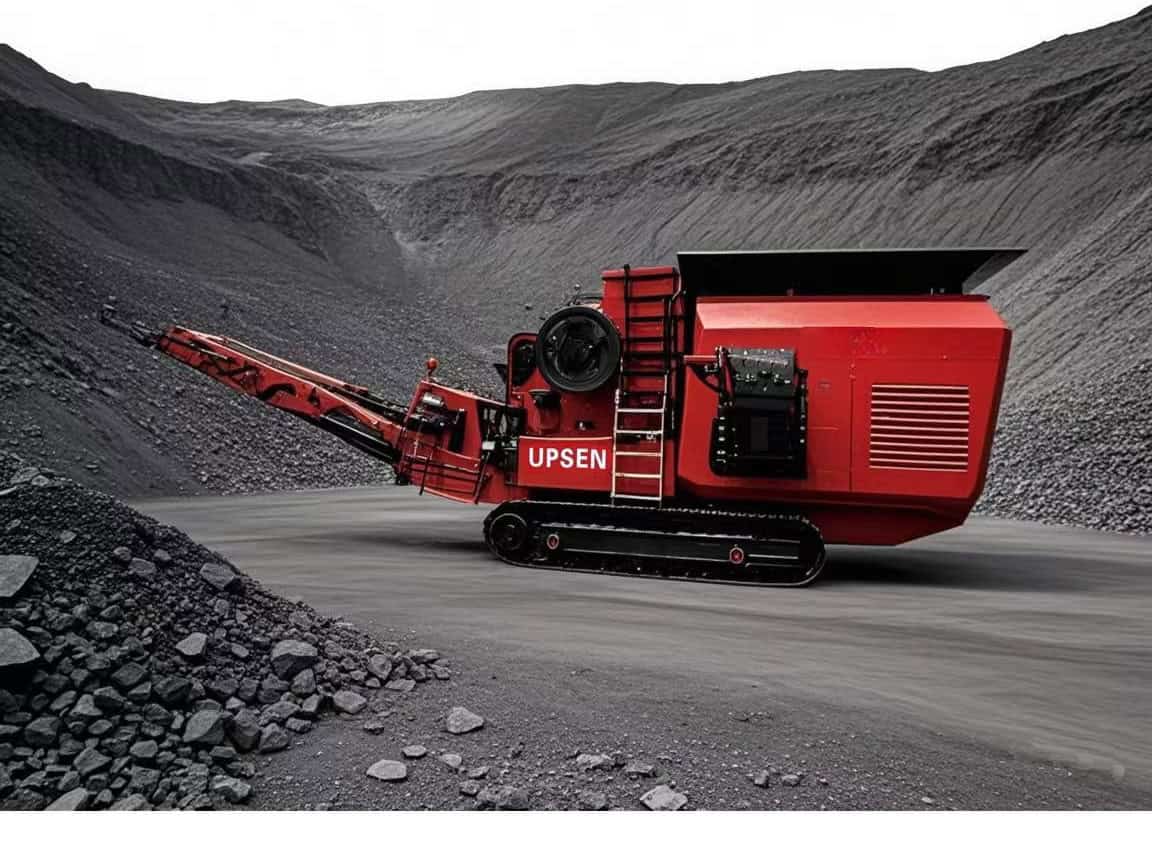

UPSEN UJC805 Jaw Crusher - Image 9
SKU U-JC805-1 Category Tag Brand:

UPSEN UJC805 Jaw Crusher

Production-Class Output — Without Big-Brand Overhead.

Used & Certified Pre-Owned Available
New Starting at:

$176,500

Financing available:
$0 Down. 90 Days No Payments (OAC)
Request a Quote >
U.S. Supported • Nationwide Field Service • Quick Parts Delivery • 1-Year OEM Warranty

The UJC805 Jaw Crusher is a high-capacity, track-mounted machine that delivers heavy-duty performance for stone and concrete recycling. Its powerful dual-drive system and large jaw crusher are designed to deliver reliable output for mid to large-sized operations.

If you’re running a mid-to-large operation, you know that uptime and high output are non-negotiable. That’s where the UPSEN UJC805 Mobile Jaw Crusher comes in. Built for demanding jobs in quarries, demolition, and recycling, this machine is your key to turning large volumes of stone and concrete into profitable, reusable material.

What sets the UJC805 apart is its robust design and intelligent features. With a powerful 800 x 500 mm jaw crusher at its core, it’s capable of processing up to 100 tons per hour. The heavy-duty crawler chassis makes it easy to move the unit around your site, while the integrated side conveyor acts as a prescreener, removing soil and fines to improve overall crushing efficiency.

You might be looking at other crushers, but the UJC805 is an affordable alternative that doesn’t compromise on performance. You get a professionally engineered, American-supported machine designed to be a workhorse for your business, all at a price that keeps your bottom line healthy.

Sold Worldwide: Germany, Russia, Netherlands, Finland, Canada, China, Japan, etc | Quick Parts Delivery and USA Nationwide Field Service Network

Click to Zoom In

UJC805 Features Overview

  • CRUSHING EQUIPMENT
    • Model: JC805
    • Feed Port Size: 800 x 500 mm (31-1/2″ x 19-3/4″)
    • Maximum Recommended Feed Size: 425 mm (16-3/4″)
    • Production Capacity: 50-100 t/h
    • Outlet Adjustment Range: 30-100 mm (1-1/8″ – 4″)
    • Jaw Plate Material: ZgMn13Cr2
  • POWER SYSTEMS and CONTROLS
    • Engine: Cummins 91kW (110HP) Diesel Engine
    • Driving Mode: Diesel-Hydraulic
    • Oil Consumption: 13L (3.4 gallons)
  • HOPPER / FEEDER
    • Model: GZD0832 Vibrating Feeder
    • Stock Bin Volume: 4 m³ (5.2 yd³)
  • CONVEYORS
    • Main Discharge Conveyor: B800 x 7500 mm (31-1/2″ x 24’-7″) with a stacking height of 2.8 m (9’-2″).
    • Side Conveyor: B500 x 4500 mm (19-3/4″ x 14’-9″) with a stacking height of 3 m (9’-10″).
  • STRUCTURE and UNDERCARRIAGE
    • Frame: Robust steel frame for unmatched durability.
    • Weight: 22,000 kg (48,501 lbs)
    • Working Dimensions (L x W x H): 10600 x 6100 x 3600 mm (34’-9″ x 20’-0″ x 11’-10″)
    • Transport Dimensions (L x W x H): 8900 x 2900 x 3300 mm (29’-2″ x 9’-6″ x 10’-10″)
    • Undercarriage: Heavy-duty steel track chassis (B400 x 3000) for easy mobility.
  • AUXILIARY EQUIPMENT
    • Iron Remover: RCY650 Belt-Type Iron Remover included to separate metallic materials from processed aggregate.
  • CUSTOMER SUPPORT and SERVICE
    • Start-up training offered with every machine to get your team running from day one.
    • 1- year warranty on all machines and nationwide field service support available.
    • 2-3 day quick parts delivery from our parts warehouse to minimize your downtime.
    • Consult with your UPSEN representative to ensure you get the right equipment for your specific project needs. Send us photos, videos, or material analysis reports for a proper assessment.



Demo Videos

Request a Quote >
Starting from

$176,500

Financing available

Customer Reviews

"We were skeptical at first, but we needed an affordable crusher for our growing business. We took a chance and purchased the UPSEN machine sight-unseen, and it has been a game-changer. The performance and build quality are excellent, especially for the price. The real test came when we took the machine to a large bid project in Florida. We needed some service support far from home, and the field technicians were dispatched quickly. The support from their team in California and the seamless nationwide coverage exceeded all our expectations. It's a quality machine and a solid investment. Highly recommended."
Dan T., Owner, Phoenix Contracting, Oregon

The UPSEN USA Advantage

Built for the Operator, Refined by You

We don't just sell equipment; we continuously refine it. Every piece of customer feedback we receive from our US operators is taken seriously and fed directly back to our engineering teams. This process ensures that each new machine is built to a higher standard, with continuous improvements and modifications that make it better suited for the operator in mind.

Our Commitment to You

At UPSEN, our commitment goes beyond the sale of a machine. We're dedicated to building long-term relationships with our customers. We offer the flexibility to make custom modifications built to your specs and branding options (including company logos and colors) to ensure your machine is a perfect fit for your business. We listen to your needs and strive to be a true partner in your success.

Competitive Pricing

Get a high-quality machine without the high price tag. Built for small to mid-sized jobs, get the job done right without breaking the bank.

US-Based Support

With a nationwide field service network, we serve customers across the country with quick dedicated support and fast parts delivery.

Equipment Series

Additional information

Crushing System

Feed Port Size: 800×500 mm | Max. Feed Size: 425 mm | Production Capacity: 50-100 t/h
Driving System

Engine: 91kW (110hp) Cummins
Basic Parameters

Working Dimensions (LxWxH): 10600x6100x3600 mm | Transport Dimensions (LxWxH): 8900x2900x3300 mm
Hopper / Feeder

Stock Bin Volume: 4 m³

UPSEN UJC805 Jaw Crusher

$176,500

Description

The UJC805 Jaw Crusher is a high-capacity, track-mounted machine that delivers heavy-duty performance for stone and concrete recycling. Its powerful dual-drive system and large jaw crusher are designed to deliver reliable output for mid to large-sized operations.

If you’re running a mid-to-large operation, you know that uptime and high output are non-negotiable. That’s where the UPSEN UJC805 Mobile Jaw Crusher comes in. Built for demanding jobs in quarries, demolition, and recycling, this machine is your key to turning large volumes of stone and concrete into profitable, reusable material.

What sets the UJC805 apart is its robust design and intelligent features. With a powerful 800 x 500 mm jaw crusher at its core, it’s capable of processing up to 100 tons per hour. The heavy-duty crawler chassis makes it easy to move the unit around your site, while the integrated side conveyor acts as a prescreener, removing soil and fines to improve overall crushing efficiency.

You might be looking at other crushers, but the UJC805 is an affordable alternative that doesn’t compromise on performance. You get a professionally engineered, American-supported machine designed to be a workhorse for your business, all at a price that keeps your bottom line healthy.

Additional information

Crushing System

Feed Port Size: 800×500 mm | Max. Feed Size: 425 mm | Production Capacity: 50-100 t/h
Driving System

Engine: 91kW (110hp) Cummins
Basic Parameters

Working Dimensions (LxWxH): 10600x6100x3600 mm | Transport Dimensions (LxWxH): 8900x2900x3300 mm
Hopper / Feeder

Stock Bin Volume: 4 m³
