USA-221YK · Tracked Scalping Screener
Built like equipment used to be.
Simple by Design.
Built to Work.
A 20–80 tph two-deck scalping screener on tracks — three products from one pass, sized to the compact crushers it runs behind — built around conventional diesel-hydraulic systems a qualified technician can actually work on.
- 3'9" × 7'10" deck
- 20–80 tph
- 3 products
- Kubota diesel
- 9,260 lb
- Wireless remote
Supported machine, built to order. 1-year parts warranty and first-year field-service coverage included.
Prices are for the standard supported machine, before options, delivery and applicable tax. Delivery quoted to your site.
Right-size it
Is the 221YK the right screen?
The 221YK is the compact scalper: the screen that matches a 604 or a 704, fits on a step-deck, and turns a crusher's output — or a raw pile — into three products. Here's how it sits next to the bigger flat-deck screens.
| USA-221YK | USA-1235YK | USA-1230ZS | |
|---|---|---|---|
| Screen deck | 3'9" × 7'10" (1,150 × 2,400 mm) | 3'11" × 11'6" (1,200 × 3,500 mm) | 3'11" × 9'0" (1,200 × 2,750 mm) |
| Decks | 2 — steel plate over mesh | 2 | 2 — steel plate over polyurethane |
| Rated production | 20–80 t/h | 30–100 t/h | 100–220 t/h |
| Products | 3 | 3 | 3 |
| Feed | Hopper | Hopper with feed belt | 3.9 yd³ (3 m³) hopper, apron feeder |
| Operating weight | 9,259 lb (4,200 kg) | 17,637 lb (8,000 kg) | 27,558 lb (12,500 kg) |
| Transport (L × W) | 16'9" × 6'11" (5,100 × 2,100 mm) | 25'11" × 7'3" (7,900 × 2,200 mm) | 31'6" × 7'5" (9,600 × 2,250 mm) |
| Price | $89,900 | $190,900 | $192,900 |
| Availability | Factory order | Factory order | Factory order |
Rated production depends on material, moisture, media and the split you're making. For compost, topsoil and damp material that blinds a flat deck, look at the USA-30TS trommel.
See it work
Want to see a 221YK run before you commit? Ask on the quote form. We'll send video of the machine on material like yours, and tell you what's possible for seeing one in person.
The idea behind the machine
Built like equipment used to be.
Heavy equipment keeps getting more complicated. More sensors, more controllers, more proprietary software between the operator and the machine — and more ways for a machine to stop that nobody on your site can diagnose.
UPSEN takes a different approach. The USA-221YK is designed around conventional diesel-hydraulic systems and components a qualified heavy-equipment technician will recognize: a Kubota diesel, hydraulic drive, a two-deck screen box, belts, steel tracks. Technology stays where it makes the machine better to run — the wireless remote, for one. It doesn't get added because it can be.
Some manufacturers go the other way and build more integration into their machines. That's a legitimate choice. So is this one. Which philosophy fits you comes down to one question: who's going to work on it?
Mechanical where it matters
Diesel-hydraulic drive. Conventional systems. Nothing proprietary standing between you and the machine.
Understandable
Designed so qualified heavy-equipment technicians can understand it, diagnose it and service it — your mechanic, or an independent technician we coordinate.
Built for the job
It screens, it stacks, it tracks. Everything you need to do the job. Less of what you don't.
This isn't nostalgia. It's a decision about what a screener is for.
Why the 221YK
What you're actually buying.
Six things the USA-221YK does that matter on a job, in the order contractors ask about them.

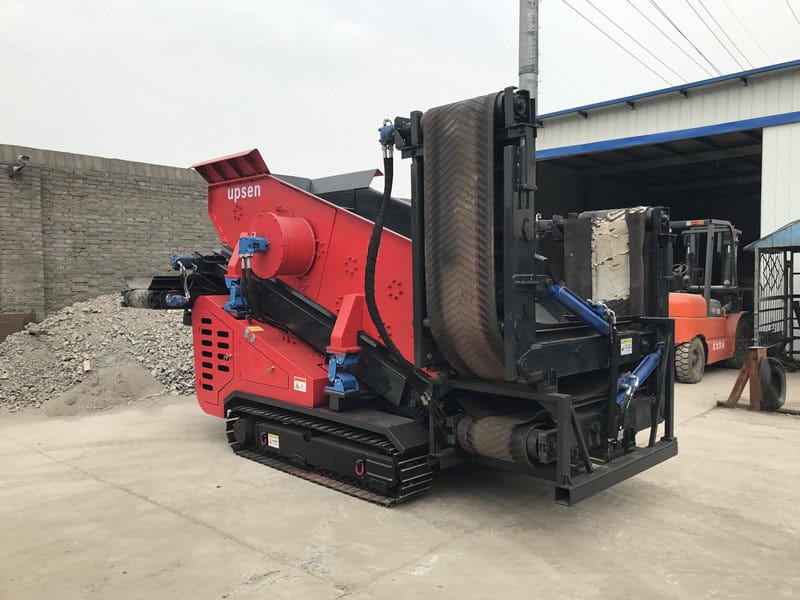

Three products from one pass
Overs come off the top deck, mids and fines off two conveyors. Crusher output becomes base and a saleable fine in one pass; a raw pile becomes rock, fill and soil.
Sized to a compact crusher
Rated 20–80 tph — the range a 604 or a 704 produces. Run it behind the crusher and the whole train is two machines a small crew can move and run.
Diesel-hydraulic simplicity
A 24 HP (18.2 kW) Kubota diesel and hydraulic drive. Conventional systems a technician can trace with a schematic and a gauge, not a laptop and a login.
Wireless remote, tracked
Track it into position and set it up from a safe distance with the wireless remote. Screen where the material sits instead of hauling it across the yard.
Practical serviceability
Screen media in any size from 3/16" to 8" (5–200 mm), cut to the products you sell. Common wear parts, stocked in the U.S. A full English operator's manual written to be used, not filed.
Supported from day one
Built to order for the U.S. market. A 1-year parts warranty and first-year field-service coverage included. Wear and service parts on the shelf here. Financing through our lending partners. Delivery quoted to your site.
Pricing
What it costs, and what comes with it.
The USA-221YK is sold as a supported machine. The price includes the coverage a screener should come with — not just the iron.
$89,900
Built to order and delivered to your site. Options and delivery quoted separately.
Included with every USA-221YK
- 1-year manufacturer parts warranty
- 12 months of field-service coverage, coordinated by UPSEN USA
- Factory troubleshooting relayed through UPSEN USA — a direct line to the people who built it
- Wear and service parts stocked in the U.S., shipped same or next business day
- Full English operator's and parts manual
- Delivery quoted to your destination — no flat-rate guesswork
Estimated monthly payment
— /mo · 60 months
Estimate — 60 months at ~10.7% APR. Final terms set by the lender on approved credit.
Based on the listed machine price.
Financing
Available through our lending partners. Getting pre-approved before we talk keeps the whole process moving. Apply for financing →
Configure it
Screen media cut to your products, service and spare-parts kits — priced on your quote. Tell us what you're screening and what you sell, and we'll tell you what you actually need.
Price is for the standard supported machine, before options, delivery and applicable tax.
Support & warranty
What support looks like.
UPSEN USA backs every machine it sells with a direct line to the factory, wear parts stocked in the U.S., and field service coordinated by our own support team. Here's how it works when you need it.
You call UPSEN USA
Call, text or email our support team with photos or video. You reach people who know the machine — and who talk to the factory directly.
We work it with the factory
UPSEN USA takes the issue straight to the manufacturer and comes back with a clear next step: what to check, what to adjust, what to replace.
Parts ship fast
Wear and service parts ship from our U.S. stock same or next business day — most customers have them in hand within 2–3 days. Factory-sourced components are air-freighted.
Field service, coordinated by us
If the fix needs hands on the machine, UPSEN USA dispatches an insured, independent heavy-equipment technician and manages the job start to finish. In your first 12 months, covered work draws on the field-service coverage included with the machine.
Full coverage terms come with your proposal.
One accountable company. Parts in stock in the U.S. A direct line to the factory. That's the structure — and it's what you get.
Options
Configure the machine.
Add what your material needs and skip what it doesn't. Each option is priced on your quote, with the machine.
Screen media to spec
Priced on your quote
Decks cut to the products you sell — any size from 3/16" to 8" (5–200 mm). Tell us the split and we spec the media.
Recommended if you sell spec productService-parts kit
Priced on your quote
Filters, belts and the service items you'll need in year one — on your shelf before you need them.
Spare-parts kit
Priced on your quote
Belts, rollers and wear items, so a change-out doesn't wait on a shipment.
Options are priced separately from the machine. Not sure what media you need? Say what you're screening on the quote form and we'll tell you what makes sense — and what doesn't.
Specifications
USA-221YK, by the numbers.
U.S. Tier 4 Final configuration. U.S. customary measurements first, with metric equivalents alongside.
Screen
| Screen deck | 3'9" × 7'10" (1,150 × 2,400 mm) |

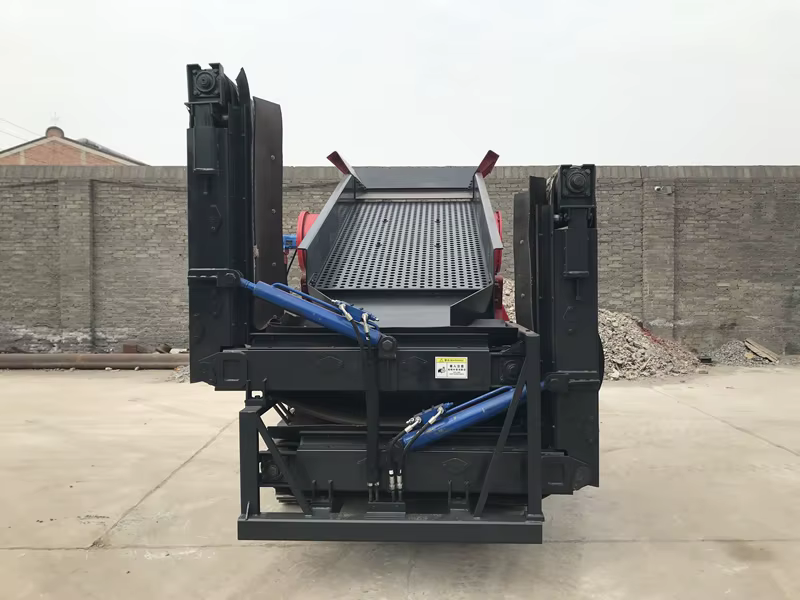

| Decks | Two — steel plate top deck, mesh bottom deck |
| Screen media | Custom, 3/16" – 8" (5–200 mm) |
| Rated production | 20–80 t/h |
| Products | Three: overs, mids, fines |
Engine & drive
| Engine | Kubota diesel |
| Emissions | EPA Tier 4 Final |
| Rated output | 24 HP (18.2 kW) |

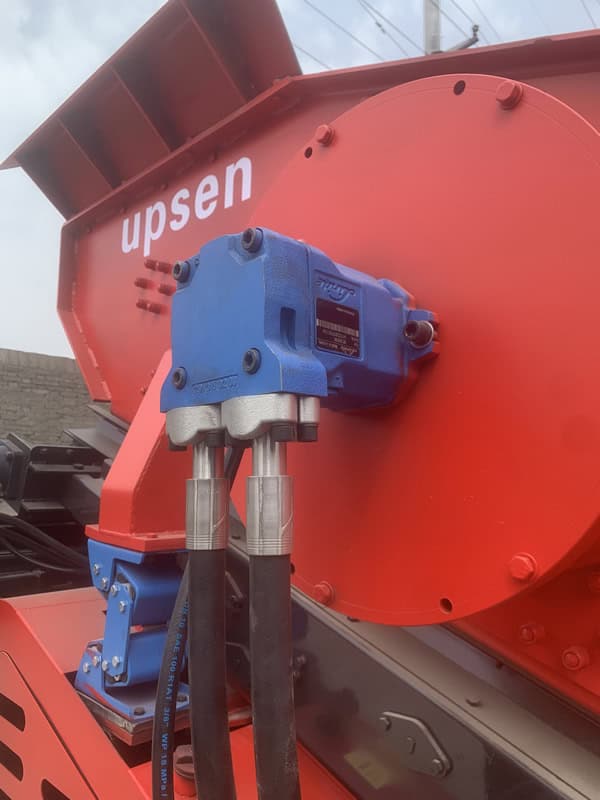

| Drive | Diesel-hydraulic |
| Controls | Wireless remote for setup and operation |
Conveyors
| Product 1 | Overs off the top deck |
| Product 2 conveyor | 25.6" × 9'10" (B650 × 3,000 mm) |
| Product 3 conveyor | 19.7" × 8'2" (B500 × 2,500 mm) |
Machine
| Operating weight | 9,259 lb (4,200 kg) |
| Working dimensions (L × W × H) | 16'9" × 14'1" × 8'4" (5,100 × 4,300 × 2,550 mm) |
| Transport dimensions (L × W × H) | 16'9" × 6'11" × 8'2" (5,100 × 2,100 × 2,500 mm) |
| Undercarriage | Steel tracks, 11.8" × 6'11" (300 × 2,100 mm) |
Included with the machine
| Documentation | English operator's and parts manual |
| Warranty | 1-year manufacturer parts warranty |
| Support | 12 months field-service coverage; factory troubleshooting relayed through UPSEN USA |
| Parts | Wear and service parts stocked in the U.S., shipped same or next business day |
Full spec sheet, options and dimensions — sent to your inbox.
Specifications describe the U.S. Tier 4 Final configuration and are subject to change by the manufacturer. Actual production varies with material, moisture, media, feed method and operating practice.
Brochure
Get the USA-221YK brochure.
Everything on this page in a form you can print, forward to a partner, or hand to your mechanic:
- Full specification sheet, U.S. Tier 4 Final configuration
- Working and transport dimensions
- Screen media, options and what's included with the machine
- How support and the parts warranty work
Enter your email and it's on the way.
Applications
Where the 221YK earns its keep.
A 3'9" × 7'10" two-deck box with media from 3/16" to 8" (5–200 mm) covers what a contractor or a small yard needs to separate. Here's where it fits.
Behind a compact crusher
Size 604 and 704 output into base and a saleable fine in one pass.
Recycled concrete & asphalt
Turn a crushed pile into spec product instead of one grade of everything.
Topsoil & fill
Rock, roots and debris out; screened soil you can sell or spread.
C&D debris
Fines out of mixed loads before they go to the crusher or the landfill.
Sand & gravel
Scalp the pit run; make a clean product with the second deck.
Asphalt millings
Oversize out, uniform millings for reuse or sale.
Small pits
Scalping and sizing without a plant-sized screen.
Yard stockpiles
Turn the mixed pile you've been stepping around into three you can sell.
Landscape products
Screened topsoil, decorative rock and drainage stone from what you already have.
Who you're dealing with
The authorized U.S. distributor, with a direct line to the factory.
You should know exactly who's behind your machine.
UPSEN USA
The authorized U.S. distributor for UPSEN equipment, supporting compact crushing, screening and processing equipment in the U.S. since 2022. Sales, stock, parts and service coordination through one team.
The factory
UPSEN has built mobile crushing, screening and shredding equipment since 2010 — 33 models, ISO 9001 certified, with machines working in more than 80 countries. UPSEN USA has worked directly with the factory's leadership for more than five years. Diesel machines built for the U.S. market carry EPA Tier 4 Final engines.
How we work
- Price published, options priced, delivery quoted to your site
- Wear and service parts stocked in the U.S.
- Field service coordinated by UPSEN USA
- A direct line to the factory when a question needs the people who built the machine
- Real people on the phone — not a ticket queue
Next step
Tell us what you're screening.
Send the basics. You'll get back build timing, a delivery quote to your site, and a straight answer on whether the 221YK is the right machine — or whether the 1235YK or a 30TS trommel fits your material better.
Prefer to talk?
+1 (617) 546-8001
Call or text. Our sales team picks up.
Financing
Financing is available through our lending partners. Apply for financing →
Want to see it run first?
Check the box on the form. We'll send video of the 221YK on material and tell you what's possible for seeing one in person.
