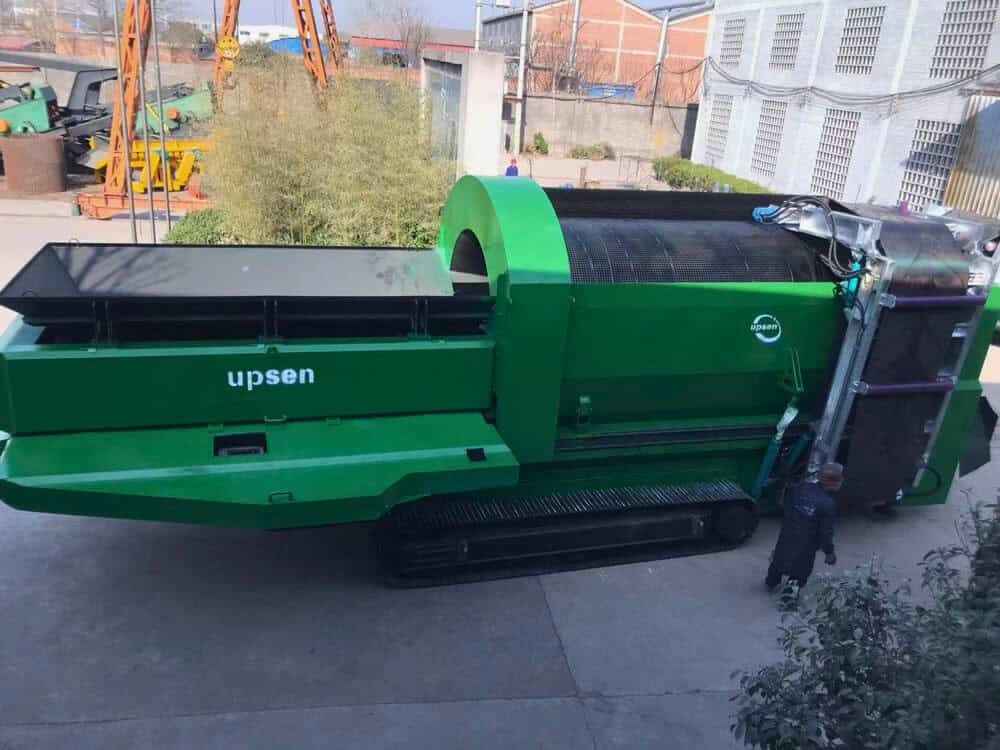

USA-30TS · Tracked Trommel Screener
Built like equipment used to be.
Simple by Design.
Built to Work.
A 20–60 tph tracked trommel with a 3'11" × 12'6" two-stage drum — for compost, topsoil, green waste and the damp, sticky material that blinds a flat deck — built around conventional diesel-hydraulic systems a qualified technician can actually work on.
- 3'11" × 12'6" drum
- 20–60 tph
- Two-stage drum
- Kubota diesel
- 16,500 lb
- Wireless remote
Supported machine, built to order. 1-year parts warranty and first-year field-service coverage included.
Prices are for the standard supported machine, before options, delivery and applicable tax. Delivery quoted to your site.
Right-size it
Trommel or flat deck?
A trommel tumbles the material through a rotating drum; a vibrating screen shakes it across a deck. Damp, organic and sticky material works in a trommel and blinds a deck. Dry rock and recycled concrete go faster across a deck. Here's the 30TS next to the flat-deck screens. Need a larger trommel? The USA-30TS is rated 20–60 tons/hr; the USA-40TS model option is rated 60–100 tons/hr.
| USA-221YK | USA-30TS | USA-1235YK | |
|---|---|---|---|
| Best for | Dry rock, recycled concrete, fill | Compost, topsoil, green waste, damp material | Aggregate, sand & gravel, dry product |
| Screen | 3'9" × 7'10" (1,150 × 2,400 mm) two-deck box | 3'11" × 12'6" (1,200 × 3,800 mm) two-stage drum | 3'11" × 11'6" (1,200 × 3,500 mm) two-deck box |
| Products | 3 | 3 (fines, mids, overs) | 3 |
| Rated production | 20–80 t/h | 20–60 t/h | 30–100 t/h |
| Operating weight | 9,259 lb (4,200 kg) | 16,535 lb (7,500 kg) | 17,637 lb (8,000 kg) |
| Transport (L × W) | 16'9" × 6'11" (5,100 × 2,100 mm) | 24'3" × 7'4" (7,400 × 2,230 mm) | 25'11" × 7'3" (7,900 × 2,200 mm) |
| Price | $89,900 | $141,900 | $190,900 |
| Availability | Factory order | Factory order | Factory order |
Rated production depends on material, moisture and drum media. If your material is dry and your products are aggregate sizes, a flat-deck screen is faster for the money; if it's organic or wet, the trommel keeps working when a deck stops.
See it work
Want to see a 30TS run before you commit? Ask on the quote form. We'll send video of the machine on material like yours, and tell you what's possible for seeing one in person.
The idea behind the machine
Built like equipment used to be.
Heavy equipment keeps getting more complicated. More sensors, more controllers, more proprietary software between the operator and the machine — and more ways for a machine to stop that nobody on your site can diagnose.
UPSEN takes a different approach. The USA-30TS is designed around conventional diesel-hydraulic systems and components a qualified heavy-equipment technician will recognize: a Kubota diesel, hydraulic drive, a rotating drum, a brush cleaner, belts, steel tracks. Technology stays where it makes the machine better to run — the wireless remote, for one. It doesn't get added because it can be.
Some manufacturers go the other way and build more integration into their machines. That's a legitimate choice. So is this one. Which philosophy fits you comes down to one question: who's going to work on it?
Mechanical where it matters
Diesel-hydraulic drive. Conventional systems. Nothing proprietary standing between you and the machine.
Understandable
Designed so qualified heavy-equipment technicians can understand it, diagnose it and service it — your mechanic, or an independent technician we coordinate.
Built for the job
It screens, it stacks, it tracks. Everything you need to do the job. Less of what you don't.
This isn't nostalgia. It's a decision about what a screener is for.
Why the 30TS
What you're actually buying.
Six things the USA-30TS does that matter on a job, in the order contractors ask about them.

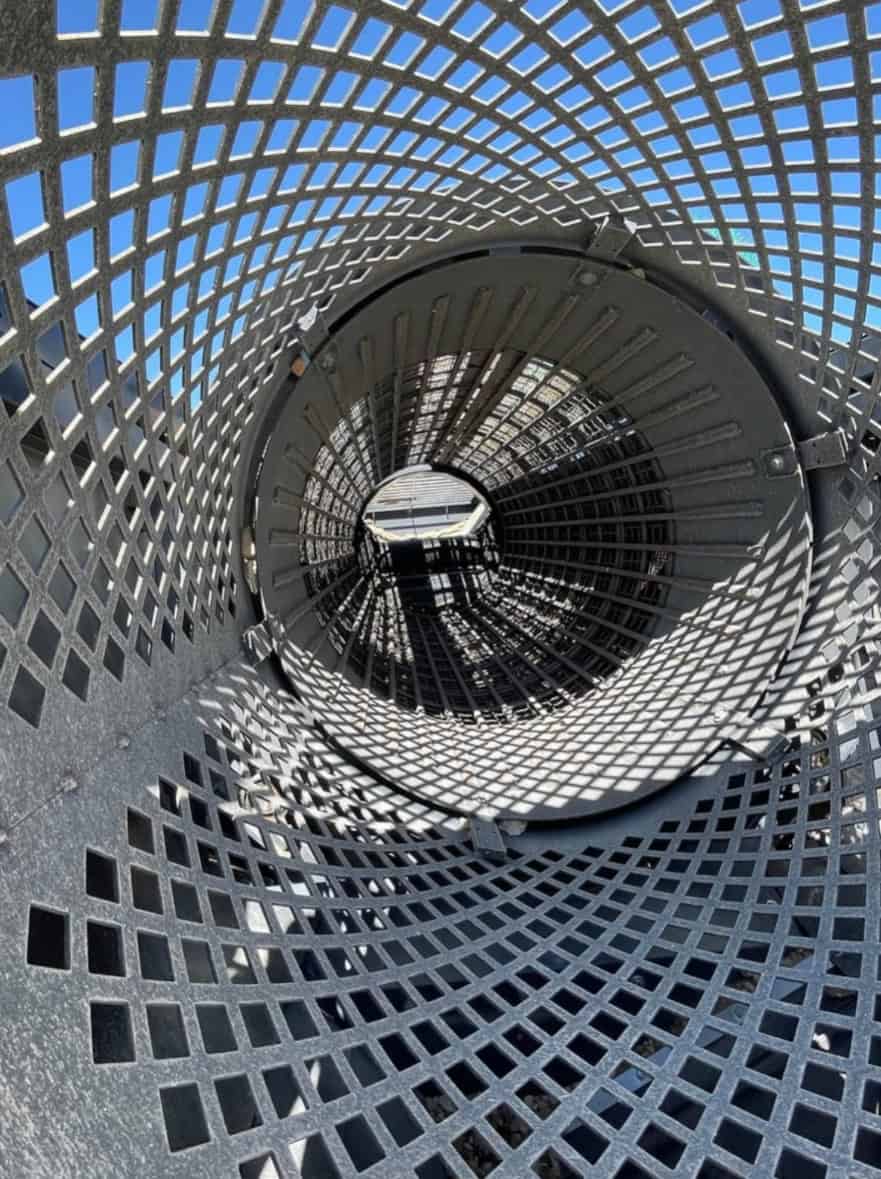

Built for the material that blinds a deck
Compost, topsoil, green waste, damp fill. The drum tumbles it instead of shaking it, so wet and fibrous material keeps moving and the fines keep falling through.
Two products plus overs, one pass
A two-stage drum — ⅜" (10 mm) then 2" (50 mm) as standard — makes a fine, a mid and an oversize in a single pass, each on its own conveyor.
Diesel-hydraulic simplicity
A 24 HP (18.2 kW) Kubota diesel and hydraulic drive. Conventional systems a technician can trace with a schematic and a gauge, not a laptop and a login.
A brush that keeps the drum open
A rotating brush cleaner runs against the drum so sticky material doesn't plug the holes and production doesn't fade through the shift.
Wireless remote, tracked
Track it to the pile and set it up from a safe distance with the wireless remote. In transport it's 24'3" long and 7'4" wide — one step-deck, no permit.
Supported from day one
Built to order for the U.S. market. A 1-year parts warranty and first-year field-service coverage included. Wear and service parts on the shelf here. Financing through our lending partners. Delivery quoted to your site.
Pricing
What it costs, and what comes with it.
The USA-30TS is sold as a supported machine. The price includes the coverage a screener should come with — not just the iron.
$141,900
Built to order and delivered to your site. Options and delivery quoted separately.
Included with every USA-30TS
- 1-year manufacturer parts warranty
- 12 months of field-service coverage, coordinated by UPSEN USA
- Factory troubleshooting relayed through UPSEN USA — a direct line to the people who built it
- Wear and service parts stocked in the U.S., shipped same or next business day
- Full English operator's and parts manual
- Delivery quoted to your destination — no flat-rate guesswork
Estimated monthly payment
— /mo · 60 months
Estimate — 60 months at ~10.7% APR. Final terms set by the lender on approved credit.
Based on the listed machine price.
Financing
Available through our lending partners. Getting pre-approved before we talk keeps the whole process moving. Apply for financing →
Configure it
Drum media in other sizes, service and spare-parts kits — priced on your quote. For more trommel capacity, ask about the USA-40TS model option: 60–100 tons/hr at a machine price of $218,900, before options, delivery and applicable tax. The USA-30TS remains 20–60 tons/hr at $141,900. Tell us which model and products you need.
Price is for the standard supported machine, before options, delivery and applicable tax.
Support & warranty
What support looks like.
UPSEN USA backs every machine it sells with a direct line to the factory, wear parts stocked in the U.S., and field service coordinated by our own support team. Here's how it works when you need it.
You call UPSEN USA
Call, text or email our support team with photos or video. You reach people who know the machine — and who talk to the factory directly.
We work it with the factory
UPSEN USA takes the issue straight to the manufacturer and comes back with a clear next step: what to check, what to adjust, what to replace.
Parts ship fast
Wear and service parts ship from our U.S. stock same or next business day — most customers have them in hand within 2–3 days. Factory-sourced components are air-freighted.
Field service, coordinated by us
If the fix needs hands on the machine, UPSEN USA dispatches an insured, independent heavy-equipment technician and manages the job start to finish. In your first 12 months, covered work draws on the field-service coverage included with the machine.
Full coverage terms come with your proposal.
One accountable company. Parts in stock in the U.S. A direct line to the factory. That's the structure — and it's what you get.
Options
Configure the machine.
Add what your material needs and skip what it doesn't. Each option is priced on your quote, with the machine.
Drum media to spec
Priced on your quote
The machine ships with 10 mm and 50 mm stages. Tell us the products you sell and we spec the drum sections to match.
Recommended if you sell spec productService-parts kit
Priced on your quote
Filters, belts and the service items you'll need in year one — on your shelf before you need them.
Spare-parts kit
Priced on your quote
Belts, rollers, brush and wear items, so a change-out doesn't wait on a shipment.
Options are priced separately from the machine. Not sure what media you need? Say what you're screening on the quote form and we'll tell you what makes sense — and what doesn't.
Specifications
USA-30TS, by the numbers.
U.S. Tier 4 Final configuration. U.S. customary measurements first, with metric equivalents alongside.
Trommel
| Drum diameter | 3'11" (1,200 mm) |
| Drum length | 12'6" (3,800 mm) |
| Standard media | Two-stage: 10 mm and 50 mm (⅜" and 2") |
| Drum cleaner | Rotating brush, 10.2" (Ø260 mm) |
| Rated production | 20–60 t/h |
Engine & drive
| Engine | Kubota diesel |
| Emissions | EPA Tier 4 Final |
| Rated output | 24 HP (18.2 kW) |
| Drive | Diesel-hydraulic |
| Controls | Wireless remote |
Hopper & feeder

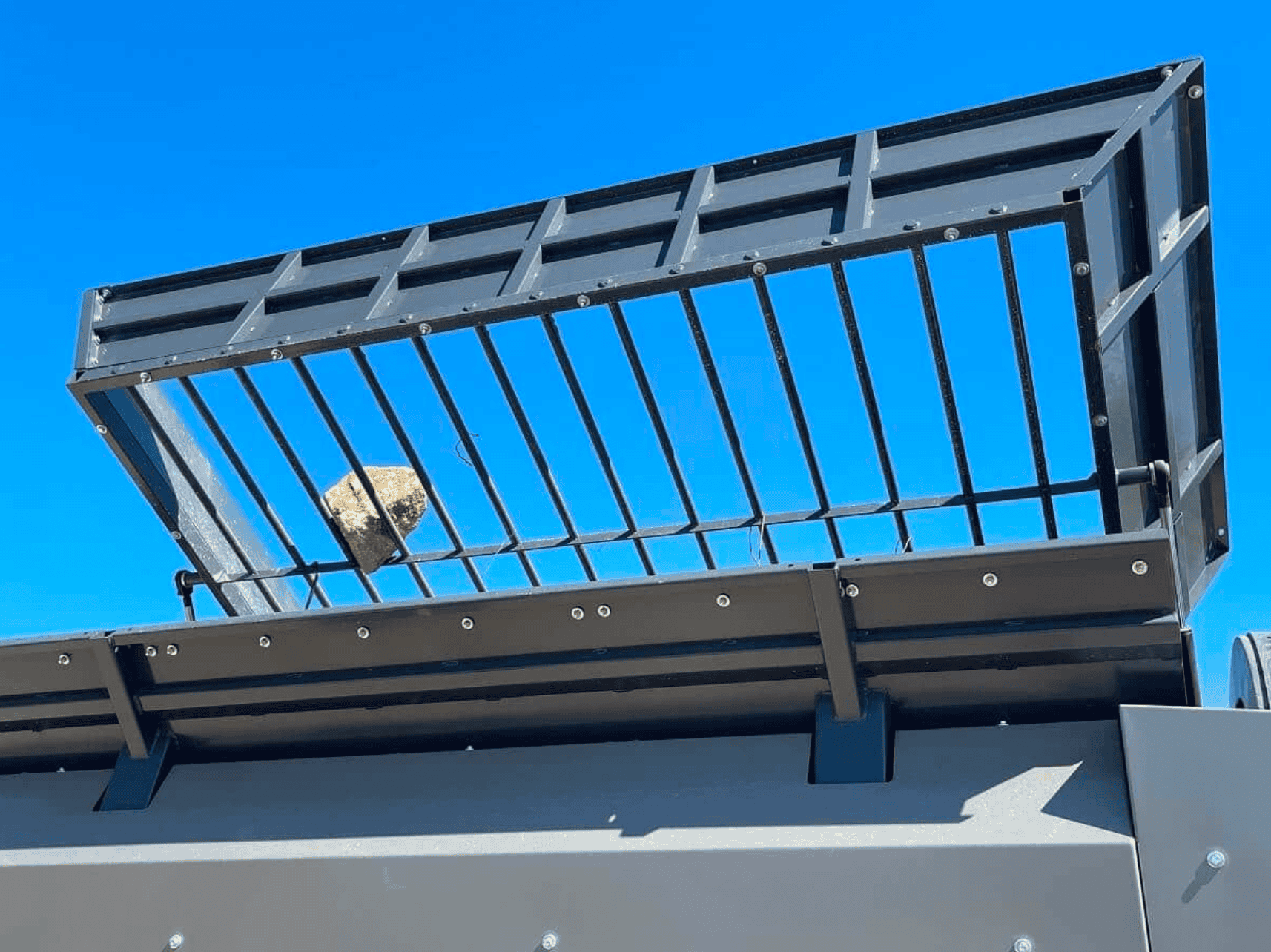

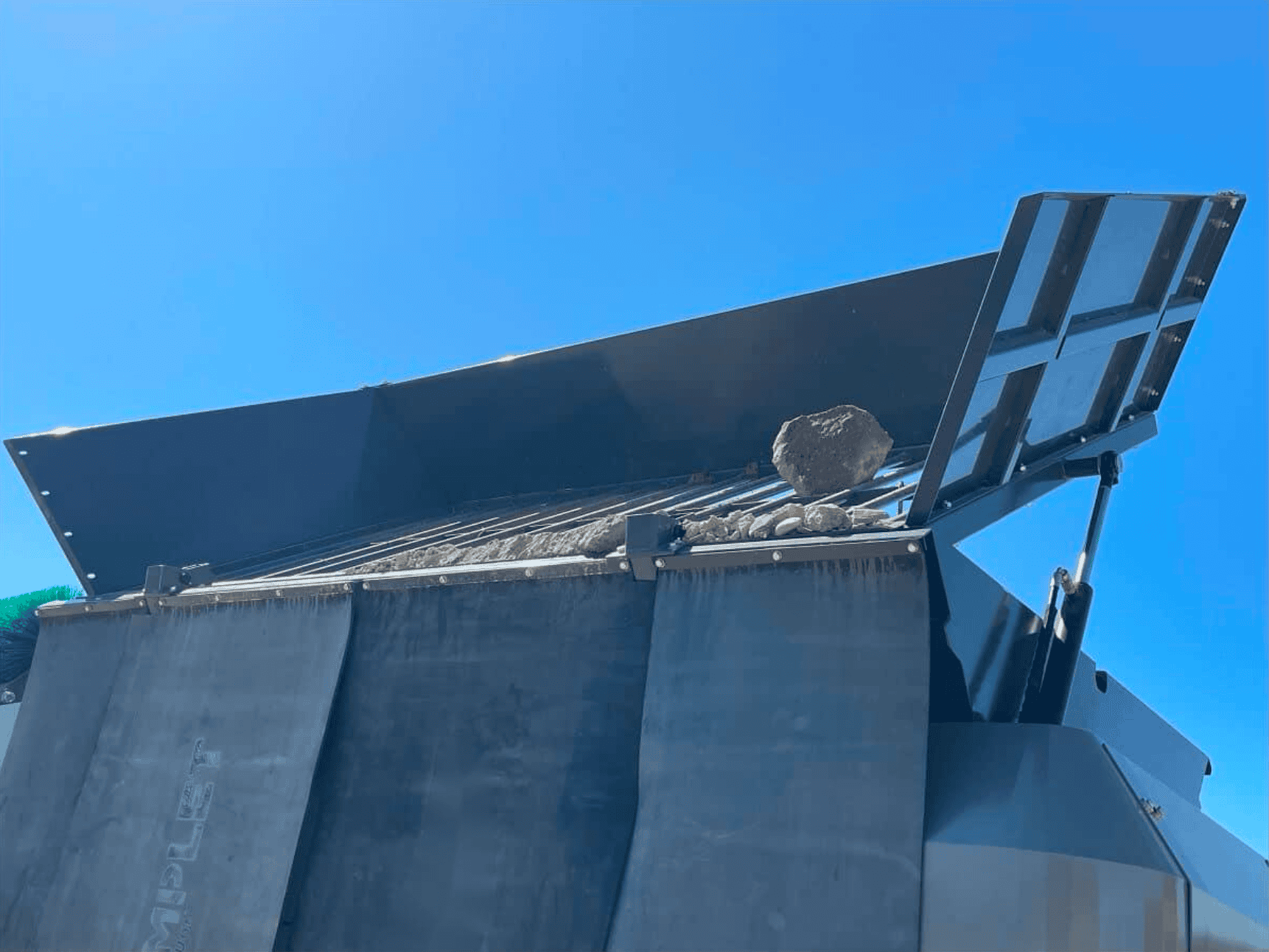

| Hopper opening | 7'3" × 11'2" (2,200 × 3,400 mm) |
| Feed conveyor | 25.6" × 9'10" (B650 × 3,000 mm) |
Conveyors
| Product 1 (fines) | 31.5" × 6'7" (B800 × 2,000 mm) |
| Product 2 (mids) | 25.6" × 6'7" (B650 × 2,000 mm) |
| Product 3 | Oversize, off the drum end |
Machine
| Operating weight | 16,535 lb (7,500 kg) |
| Working dimensions (L × W × H) | 24'3" × 13'9" × 8'4" (7,400 × 4,200 × 2,550 mm) |
| Transport dimensions (L × W × H) | 24'3" × 7'4" × 8'4" (7,400 × 2,230 × 2,550 mm) |
| Undercarriage | Steel tracks, 11.8" × 9'10" (300 × 3,000 mm) |
Included with the machine
| Documentation | English operator's and parts manual |
| Warranty | 1-year manufacturer parts warranty |
| Support | 12 months field-service coverage; factory troubleshooting relayed through UPSEN USA |
| Parts | Wear and service parts stocked in the U.S., shipped same or next business day |
Full spec sheet, options and dimensions — sent to your inbox.
Specifications describe the U.S. Tier 4 Final configuration and are subject to change by the manufacturer. Actual production varies with material, moisture, drum media, feed method and operating practice.
Brochure
Get the USA-30TS brochure.
Everything on this page in a form you can print, forward to a partner, or hand to your mechanic:
- Full specification sheet, U.S. Tier 4 Final configuration
- Working and transport dimensions
- Drum media, options and what's included with the machine
- How support and the parts warranty work
Enter your email and it's on the way.
Applications
Where the 30TS earns its keep.
A 3'11" × 12'6" two-stage drum covers what a compost yard, a landscape supplier or a soil operation needs to separate. Here's where it fits.
Compost & mulch
Finished compost and mulch screened to a saleable size, overs back to the pile.
Topsoil
Rock, roots and clods out; screened topsoil you can sell by the yard.
Green waste
Yard waste and land-clearing debris sized for compost or biomass.
Recycling-yard fines
Fines pulled from C&D loads before crushing or disposal.
Landscape products
Screened soil, bark and decorative product from what you already have.
Municipal yard waste
DPW and county yards turning leaf and brush piles into product.
Reclaimed site soil
Excavated material cleaned up for backfill instead of hauled off.
Wood chips & biomass
Chips sized for a boiler or a bag.
Damp and sticky material
Whatever blinds your flat deck in the wet season.
Who you're dealing with
The authorized U.S. distributor, with a direct line to the factory.
You should know exactly who's behind your machine.
UPSEN USA
The authorized U.S. distributor for UPSEN equipment, supporting compact crushing, screening and processing equipment in the U.S. since 2022. Sales, stock, parts and service coordination through one team.
The factory
UPSEN has built mobile crushing, screening and shredding equipment since 2010 — 33 models, ISO 9001 certified, with machines working in more than 80 countries. UPSEN USA has worked directly with the factory's leadership for more than five years. Diesel machines built for the U.S. market carry EPA Tier 4 Final engines.
How we work
- Price published, options priced, delivery quoted to your site
- Wear and service parts stocked in the U.S.
- Field service coordinated by UPSEN USA
- A direct line to the factory when a question needs the people who built the machine
- Real people on the phone — not a ticket queue
Next step
Tell us what you're screening.
Send the basics. You'll get back build timing, a delivery quote to your site, and a straight answer on whether the 30TS trommel is the right machine — or whether a flat-deck 221YK or 1235YK fits your material better.
Prefer to talk?
+1 (617) 546-8001
Call or text. Our sales team picks up.
Financing
Financing is available through our lending partners. Apply for financing →
Want to see it run first?
Check the box on the form. We'll send video of the 30TS on material and tell you what's possible for seeing one in person.
Not ready to talk?
Request the brochure → Specs, options and dimensions, sent to your inbox.
